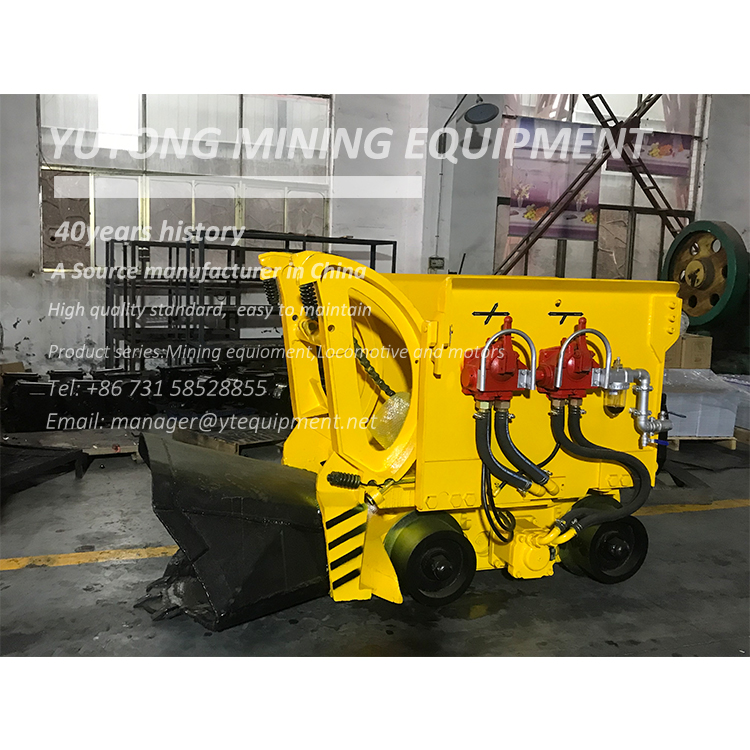

Zq-26 Pneumatic Shovel Mining Track Wheel Rock Loader

ZQ-26 Pneumatic Shovel Mining Track Wheel Rock Loader Product Description Z series rock loader is a light-duty loading equipment for rail-wheel type underground tunneling and stope. It has compact structure, strong adaptability, reliable work, easy operation and maintenance. It can be loaded on general rocks, large stones, iron ore, granite and other metal or non-metal mines, and can load up to 500MM with a slope of 100m~400m, the loading efficiency is the highest, and it is suitable for horizontal roadways in various mines (gradient ≤8). The machine is a bucket type, front loading and rear unloading, self-propelled, and its power source is pneumatic and electric. Specification Model: ZQ-26 Loading capacity (m³/h): 40-50 Loading area (m³): 0.26 Loading width (m): 2.7 Track gauge (mm): 500,600,762 or 900 Power: Wind motor Walking power (kw): 10.5 Lifting bucket power (KW): 15 Unloading height (mm): 1250 Dimension (mm) Length: 2440 Width: 1380 Height: 1500 Weight (kg): 2700

Port: Guangzhou
Срок доставки: 15 days
Package Type: Box
Weight Incl. packaging: 2700 Kilogram
Packing size: 244x138x150 Centimeter
