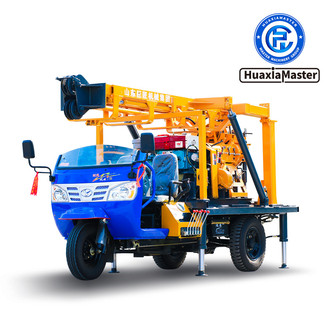

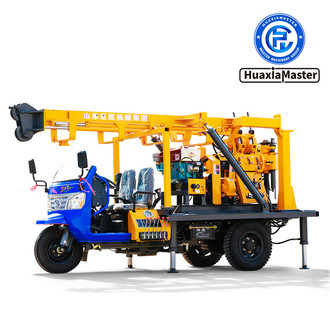

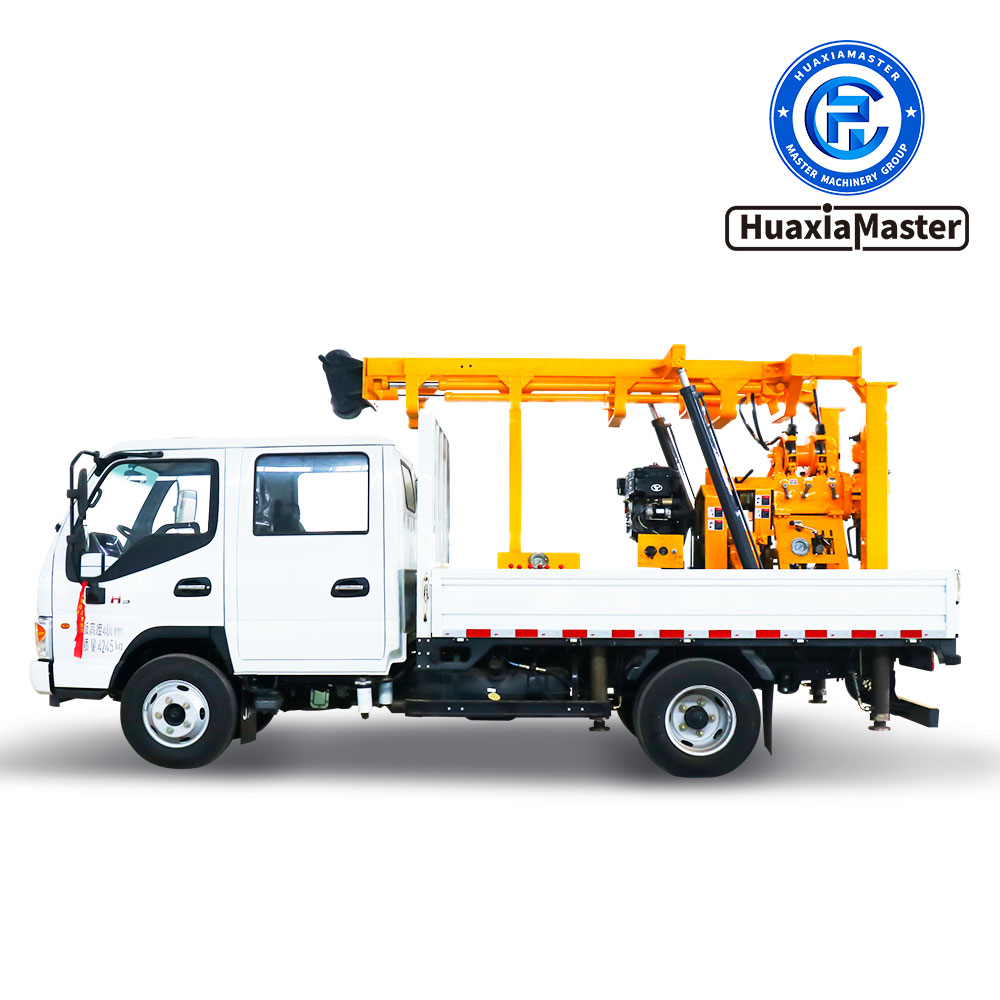

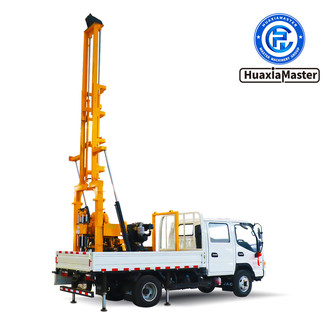

XYC Vehicle-mounted Hydraulic Core Drilling Rig

1、Introduction of XYC Series Vehicle-mounted Hydraulic Core Drilling Rig XYC series truck-mounted hydraulic core drilling rig is a kind of drilling rig equipped with truck-mounted chassis and hydraulic derrick, which is designed to meet the requirements of high speed, high efficiency, strong maneuverability and convenient long-distance and short-distance migration in field exploration. 2、Features of XYC Series Vehicle-mounted Hydraulic Core Drilling Rig 2.1 Drilling rig adopts hydraulic lifting automatic telescopic derrick, which is easy to operate, safe and efficient. 2.2 Truck-mounted chassis is convenient for mobile operation and long-distance and short-distance field shifting. 2.3 Chassis equipped with hydraulic legs can be used for leveling drilling rig. 2.4 The 24V electric starting diesel engine reduces the operator's labor intensity, especially in cold season. 2.5 BW-160 mud pump has high pressure and high flow rate, which ensures drilling depth and borehole diameter. 2.6 Configuration of the moving device can realize the front and back movement of the main machine and facilitate the operation of the wellhead.
