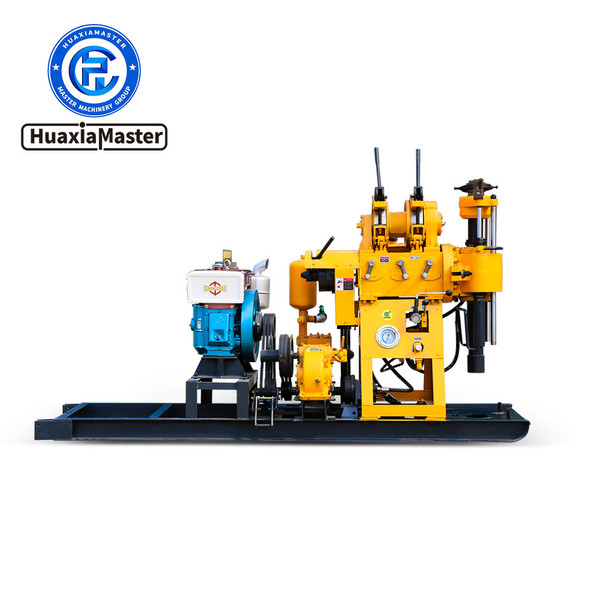

XY系列液压岩芯钻机

一、XY系列液压岩芯钻机简介Introduction to XY Series Hydraulic Core Drilling Rig XY系列钻机是一种油压给进、机械传动的中浅孔岩芯钻机，主要适用于地质岩芯钻探、打灌浆孔、水文水井钻进等工程，可根据不同的地层选用金刚石、复合片及合金等钻头钻进。 XY series drilling rig is a medium-shallow hole core drilling rig with hydraulic feed and mechanical transmission. It can be used in geological core drilling, grouting hole drilling and hydro logical well drilling. Diamond, composite and alloy bits can be selected for drilling according to different strata. ‌ 二、XY系列液压岩芯钻机特点 Features of XY Series Hydraulic Core Drilling Rig 1.具有油压自动给进机构，提高钻进效率，减轻劳动强度。 It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity. 2.采用球卡夹持机构可实现不停机倒杆，操作方便，安全可靠。 The steel ball clamping device can replace drill pipe without stopping, easy to operate, safe and reliable. 3.配有孔底压力计，便于掌握孔内情况。 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole. 4.结构紧凑、手柄集中、占地面积小、便于搬迁。 Compact structure, centralized handle, small area, easy to move. 5.扭矩大，承载力强，可实现远距离操纵变速，操作集中方便。 With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient. 三、XY系列液压岩芯钻机参数Parameters of XY Series Hydraulic Core Drilling Rig <坐地式常规款>XY系列液压岩芯钻机 XY series hydraulic core drilling rig 钻机型号Drilling rig model XY-80 XY-100 XY-150 XY-180 XY-200 钻进能力 Drilling capacity 钻孔深度 Drilling depth 80m 100m 150m 180m 200m 开孔直径 Open hole dia. 219mm 325mm 325mm 375mm 400mm 终孔直径 End hole dia. 75mm 75mm 75mm 75mm 75mm 钻杆直径 Drill pipe dia 42mm 42/50mm 42/50mm 42/50mm 42/50mm 钻孔倾角 Drilling angle 75-90° 75-90° 75-90° 75-90° 75-90° 立轴 Vertical shaft 立轴转速Vertical shaft speed 142、285r/min 142、285、570r/min 140、295、470、790、1010r/min 71、142、310、620r/min 71、142、310、620r/min 立轴行程Vertical axis travel 450mm 450mm 450mm 450mm 450mm 液压油泵Hydraulic oil pump 压力Pressure 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa 转速Speed 1500r/min 1500r/min 1800r/min 1800r/min 2000r/min 卷扬机Hoist 升降能力Lifting capacity 9.3kN 9.8kN 14kN 15kN 20kN 钢丝绳容量 Wire rope capacity 27m 35m 35m 35m 35m 钢丝直径 Wire diameter 12mm 12mm 12mm 12mm 12mm 动力Power 配用动力 Matching power S1100柴油机S1100 Diesel Engine S1100柴油机 10kw电机S1100 diesel engine 10kw motor S1105柴油机 11kw电机S1105 diesel engine 11kw motor S1115柴油机 15kw电机S1115 diesel engine 15kw motor S1115柴油机 15kw电机S1115 diesel engine 15kw motor 注：产品不断改进，如有变动恕不另行通知，请以实物为准。 Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
