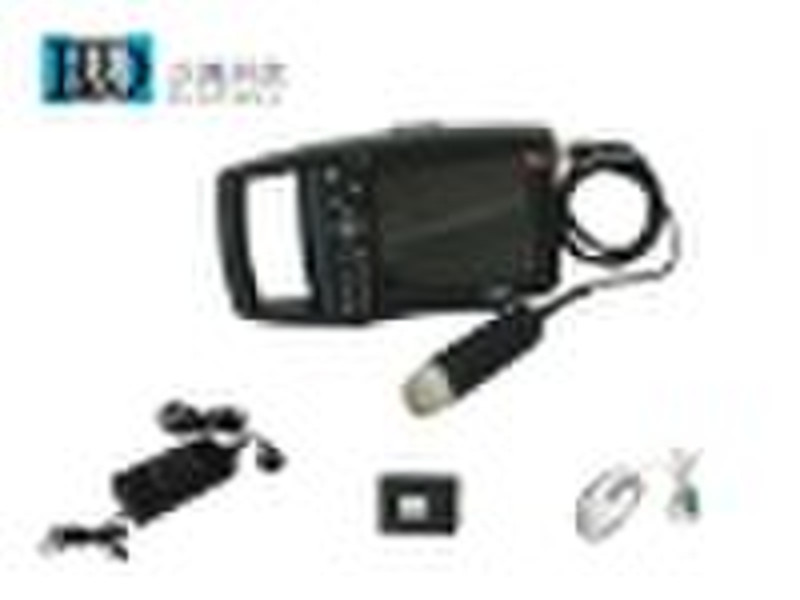

Veterinary Ultrasound Scanner

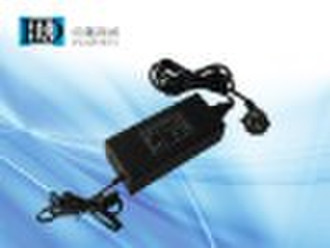

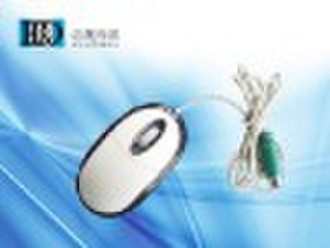

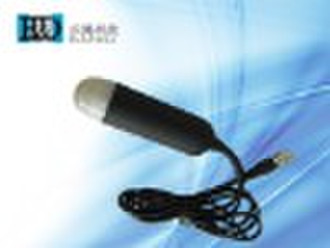

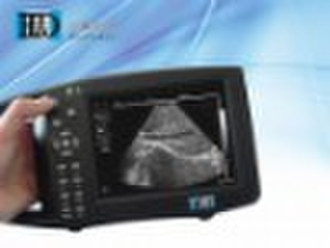

Veterinary Ultrasound Scanner ·The diagnostic device adopts large scale of programmable diagnostic device (FPGA) and surface mounted technology (SMT), which makes this diagnostic device compact, small size and light in weight ·The diagnostic device adopts technologies such as microcomputer control and digital scanning converter (DSC), large dynamic broadband low-noise preamplifier, logarithmic compression, TGC control, dynamic filtration, edge enhancement, frame, etc. to ensure legible, stable and high resolution images. ·Four display modes: B, B+B, B+M, M; Image gray scale 256 levels ·Can prove four (red, yellow, red-yellow, white-blue) pseudo color and mixed color display ·Can display real time and frozen images ·Variable-frequency probes (three gears), can fully meet the needs of clinical diagnosis ·VIDEO OUT can connect with external display, video image printer and other diagnostic devices ·Adopting soft touch keyboard and mouse operation makes the diagnostic device fast, convenient and flexible ·Jet molding enclosure with hand-held structure, 5.6 inches LCD screen and combined power supply mode of AC adapter and built-in battery make the diagnostic device convenient in outdoors and thecondition whenpower offering is not available. Technical specification Monitor size (inch) 5.6 inch TFT-LCD Display modes B,B+B,B+M,M Image gray scale 256 levels Image multiplying factor ×1.0, ×1.2, ×1.5, ×2.0 Pseudo color display four kinds: red, yellow, red-yellow, white-blue M scanning speed 2,4,6,8/ four frames can be adjusted Probe frequency 3.5MHZ Measure functions Distance, circumference, area, heart rate, gestation age Character display Case history no., age, sex VIDEO OUT Can connect external video display and video printer Battery capacity 2200mAh Mainframe power consumption 25W Mainframe weight ≤1 kg (probe excluded)
