The trailer for transportation/evacuation of equipment up to 25 tons

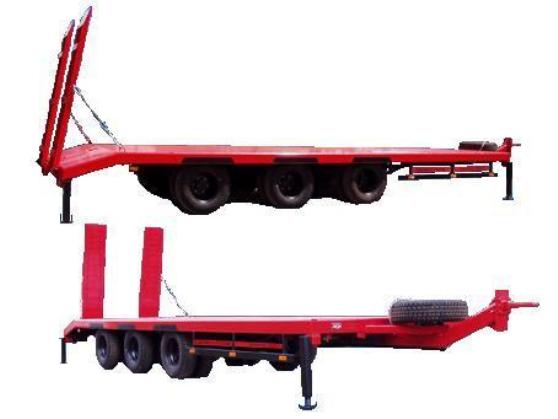

Low bed trailer 9835-77 for dump trucks and flatbed vehicles with capacity from 20 to 38 tons, intended for the carriage of any machinery, including excavators, bulldozers, HDD rigs and other heavy special equipment. The presence of the turntable with a locking mechanism for reversing allows the trailer to be maneuverable when driving around town and on difficult areas such as quarries. Mounting loops recessed into the ground around the perimeter to secure cargo. If You have a fleet of trucks and had to hire sweeper to the towing vehicle, the trailer will solve all Your transport problems. Load capacity, kg: 18000-38000 Trailer weight, kg: 6300 5000 ... Overall dimensions of platform, mm: 10700 6700 ... x ... 2400 2550 x 850 ... 950 ... 1300 The height of the frame, mm: 3500 3900 ... (by consent) Suspension: pneumatic / spring (optional) The number of wheels, PCs: 12 (+1) The number of axes, pieces: 3 Tyre size : 235/75 R 17.5 Frame material trailers: Steel 09G2S Brake system: drum with equal offset pads, drum-type, acting on all wheels. Pneumatic actuator with anti-lock braking system (ABS) Electrical equipment: single-cable 24 In, brake light, Parking lights, turn indicators, number plate lights Hitch (on agreement): loop: GOST D=90mm/EURO D=50mm/ Euro D=40mm Color: red, possible to select colors by RAL Support device: mechanical jacks/ rack The drive ramps (optional): Mechanical/spring/hydraulic Optional: Fittings for mounting containers, the development of additional options on the technical task • spare trailer wheel • wheel chocks • tool kit • ladders check for equipment corrugated/vertical • the supporting leg • drawbar adjustable in height • loop GOST inner diameter 90 (setting loops Euro at the Customer's request) • stop turntable • Shackles to secure equipment • the trailer is equipped with rear combined lights, plate lights and side marker lights • frame tent
