Sell concrete mixer truck FAW model CA5250GJBP66K2T1E4 wheel formula 6x4 working drums capacity 10m3, with a minimum payback period.
Company Sonicate.<url>," dealer in Russia for the implementation of the FAW commercial vehicles officially imported into the territory of the Russian Federation under the cu Tr, paid the recycling fee. Dealer cars FAW adapted to operation in severe climate conditions in Western and Eastern Siberia, the Far East, the production of China First Automobile Group Company (the First Chinese Engineering Company) FAW.

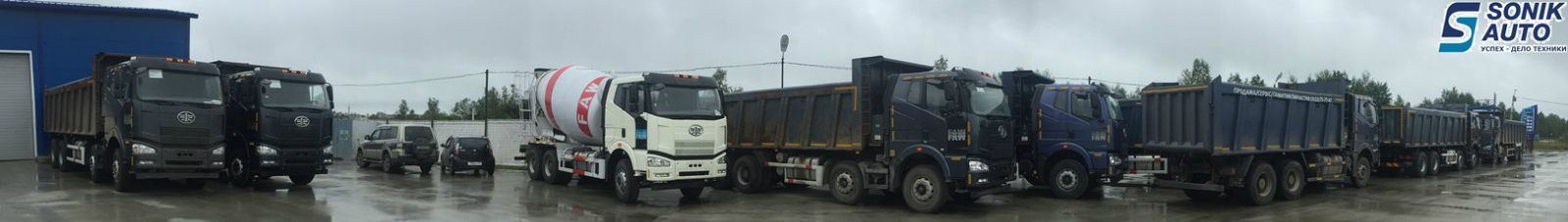

On the trade fair site of our company You can find a full line of FAW.
Formed a stock of spare parts, assistance in obtaining a car lease and credit to legal and physical persons.
Warranty on all cars FAW purchased in our company is 18 months or 80 000 km of run since putting into operation.
The address of trade fair site: Khabarovsk, C. Peace building D. solar 4.
Office address: Khabarovsk, the lane Borodino d. 1.
The advantages of the FAW trucks in front of the Chinese counterparts of Sinotruk (Howo and Howo A7)
Shaanxi Heawy Duty Automobile. Co (Shacman F2000, Shacman F3000).
- Increased engine power to 375 HP.;
- cabin design series J6 ItalDesign Giugiaro (Italy)
- brake system Wabco (Germany)
gearbox Fast Gear technology Eaton/Fuller (USA) synchronizers with the BorgWarner (USA)
- clutch Sachs (Germany)
- steering Twr Fawer (USA)
- lifting system of the body Hyva (Holland)
- wiring of Amr (USA)
- fuel equipment and control system from Bosch (Germany)
- the filter elements cleaning fuel Mahle (Germany)
- turbochargers Holset/Cummins Turbo Technologies (USA)
- technology of painting booths and painting equipment Grundfos (Germany)
- block lights Hella (Germany)
- reflective marking Avery Dennison (USA).
- Fast Gear 12JSD160T
- 12 speeds forward
- 2 back
- rated torque 1 600 Nm
- with synchronizers Borg Wagner
- the clutch is dry single plate, hydraulic and pneumatic SACHS.
- double layer steel 8 mm + 6 mm without outboard bearing.
width 865 mm (increased - high reliability and security)
- height 1 100 mm (reduced, increased stability and a low probability of rollover)
is stamped from a single sheet of high-strength steel Q500D
(supplied only for export to the Russian Federation for the domestic market used steel Q350D)
three - layer spar in the spar with a riveted connection
- the thickness of the package side rail 24 mm (8mm+8mm+8mm enlarged chapel in the curl and deformation of the frame)
- beam flange width 90 mm
- height beam flange 320 mm
- anti-corrosion treatment.
- gear ratio of a transmission 5,77 double spaced with wheel hub planetary gear
- pass the bridge with forced lubrication
- integrally molded design of beams
- stocking without welds.
- lock inter-axle and cross-axle differentials
- load capacity up to 16 tons
- MAN technology.
Wheel suspension front
dependent on semi-elliptic leaf springs
- 10 sheets thick and 18 mm width 90 mm
- load (kg) 7 500.
Wheel suspension rear
- dependent beam semi-elliptic leaf springs
- 12 sheets with a thickness of 24 mm width 90 mm
- load (kg) 27 600.
- hub rear balancer is not lubricated on silentblock (analog MAN)
- rod rear suspension balance hinges on silentblock - maintenance-free
a longitudinal tie rod with removable tip,
- joints with a polyurethane sealing cover.
Main technical data
- Ground clearance is 300 mm.
- Fuel capacity 320 litres
- DL. 9620 FR. 2495 Sun. 3830 mm.
- Capacity of tank (volume of the barrel) 10 m3.
- Machine weight 15 400 kg.
- Licensed weight 35 100 kg.
- Engine model CA6DL2–37E4, EURO 4.
- Volume of 8.6 liters,
Power 375 HP
- Wheels 315/80R22,5.
- Brake system with ABS, WABCO.
- Power steering.
- Climate system.
- Options. heater WEBASTO D2000 ST24.
- Floating cab suspension.
- 2 battery (2X12 Volt 180 a/h).
- Advanced set of tools.
