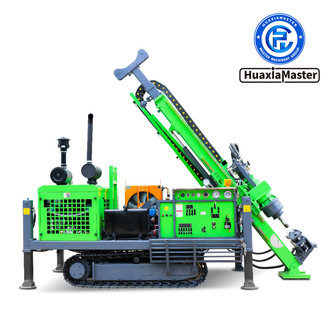

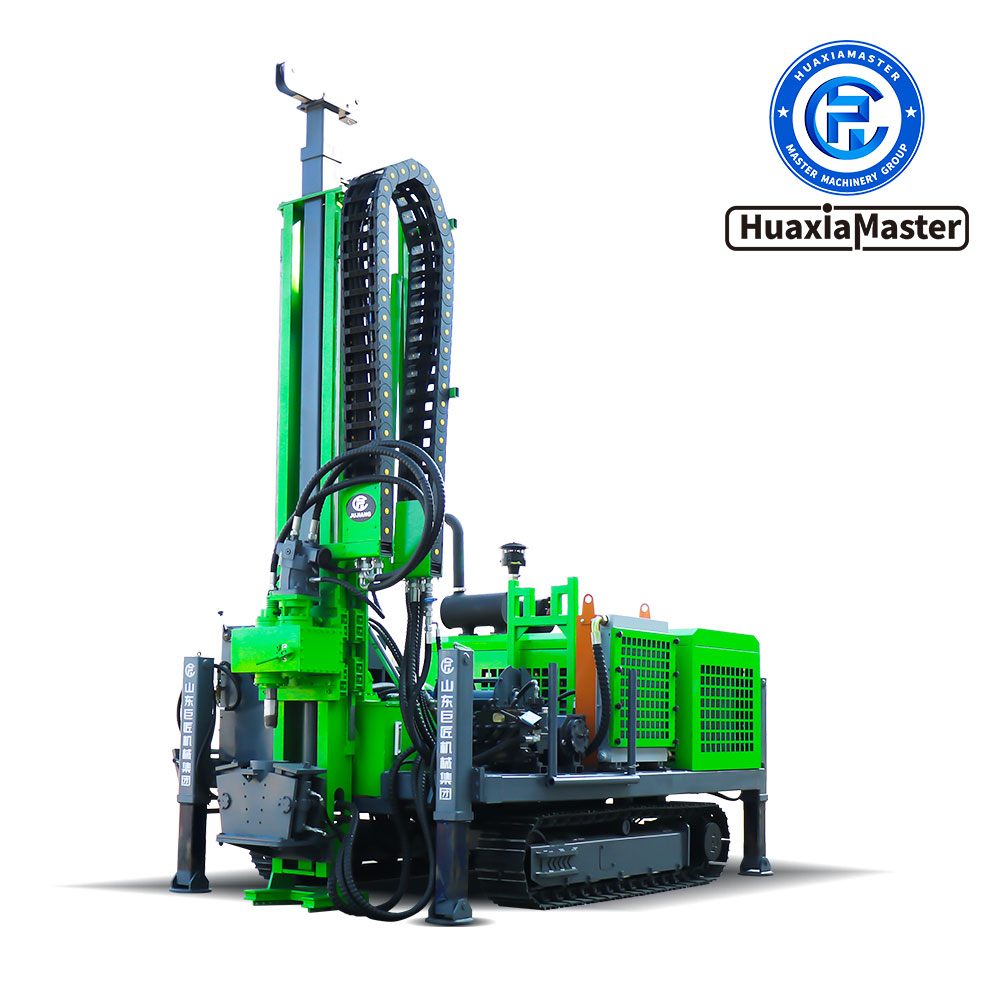

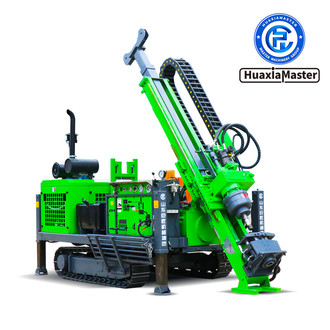

QYD系列履带式全液压岩芯钻机

一、QYD系列履带式全液压岩芯钻机简介Introduction to QYD Series Crawler Fully Hydraulic Core Drilling Rig QYD系列履带式全液压岩芯勘探钻机采用全液压动力头式钻进方式的绳索取芯钻机，钻具钻取的岩芯由卷扬机经钻杆内孔提升出来从而完成地质钻探取芯工作。主要适用于固体矿床的钻探，也可用于工程地质、浅层石油、天然气、地下水钻探，还可用于坑道通风、排水和堤坝注浆等工程钻孔。 QYD series crawler fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting. 二、QYD系列履带式全液压岩芯钻机特点 Features of QYD Series Crawler Fully Hydraulic Core Drilling Rig 1、配置无线遥控器，可对钻机行走进行远程控制，防止突发危险。 Equipped with a wireless remote control, the drilling rig can be remotely controlled to prevent sudden dangers. 2、钻机为全液压驱动，液压系统采用负载敏感控制，工作效率高、扭矩大。 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque. 3、动力头回转采用轴向柱塞泵和斜轴柱塞马达驱动，机械两档加无极调速，结构先进。 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus stepless speed regulation, advanced structure. 4、采用油缸链条倍速给进机构，运动平稳可靠，且带有动力头侧向平移机构。 Adopts cylinder chain double speed feeding mechanism, stable and reliable movement, and with power head side translation mechanism. 5、液压夹持器实现夹持钻杆，配合钻杆拆卸。 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly. 6、液压马达驱动的卷扬机，能灵活的吊起钻具或辅具。 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools. 7、钻塔采用触地式底座进行触地固定，钻进更稳定。 The rig adopts the touchdown base for touchdown fixation, making drilling more stable. 8、采用风冷加水冷，方式更多元，可保证机器长时间作业。 The use of air cooling and water cooling, more diversified way, can ensure the long time operation of the machine. 三、QYD系列履带式全液压岩芯钻机参数Parameters of QYD Series Crawler Fully Hydraulic Core Drilling Rig 钻机型号Drilling rig model QYD-600 QYD-800 QYD-1000 QYD-1000S QYD-1600 钻进能力Drilling capacity BTW 650m 1200m 1400m 1200m 1800m NTW 600m 1000m 1200m 1000m 1600m HTW 300m 800m 1000m 800m 1200m PQ / 600m 800m / 800m 液压系统Hydraulic system 额定压力 Rated pressure 32+16 Mpa 32+16 Mpa 32+16 Mpa 32+16 Mpa 32+25 Mpa 冷却方式Cooling mode 一级风冷 一级水冷 First-stage air cooling First-stage water cooling 二级风冷 一级水冷 Secondary air cooling First level water cooling 二级风冷 一级水冷 Secondary air cooling First level water cooling 二级风冷 一级水冷 Secondary air cooling First level water cooling 独立风冷+水冷Independent air cooling + water cooling 发动机Engine 发动机型号Engine type 玉柴四缸 Yuchai four cylinder 玉柴/潍柴六缸Yuchai/Weichai six cylinder 潍柴六缸 Weichai six cylinder 潍柴六缸 Weichai six cylinder 潍柴六缸 Weichai six cylinder 额定功率 Rated power 92kW 118kW 129kW 129kW 147kW 动力头Power head 最大扭矩 Maximum torque 1400N.m 1800N.m 2600N.m 2600N.m 3000N.m 最大转速 Maximum rotate speed 1400rpm 1400rpm 1400rpm 1400rpm 1400rpm 给进行程 Feeding stroke 2.0m 2.0m 3.5m 3.5m 3.5m 提升力 Lifting force 240kN 300kN 360kN 360kN 400kN 推进力Propulsion force 120kN 150kN 180kN 180kN 200kN 绳索取芯 卷扬机Wire-line coring winch 容绳量 Rope capacity 800m 1000m 1200m 1000m 1600m 提升力 Lifting force 15kN 20kN 24kN 24kN 24kN 提升速度 Lifting speed 110m/min 110m/min 110m/min 110m/min 110m/min 触地式 一体钻塔 Touchdown integrated drill tower 全高 Full height 6.1m 7.9m 7.9m 7.9m 8.5m 钻进角度Drilling angle 45-90° 0-90° 0-90° 45-90° 35-90° 滑移行程 Slip stroke 800mm 1200mm 1200mm 1200mm 1200mm 履带底盘 Crawler chassis 行走方式Walking mode 手动+遥控 Manual + remote control 手动+遥控 Manual + remote control 手动+遥控 Manual + remote control 手动+遥控 Manual + remote control 手动+遥控 Manual + remote control 运输尺寸 Transport size 长*宽*高 L*W*H 4.5m*1.9m*2.3m 4.5m*2.1m*2.8m 5.6m*2.2m*3.0m 5.6m*2.1m*2.6m 5.65m*2.2m*3.05m 整机质量 Whole machine weight 4.5T 6.0T 7.3T 9T 8.2T 注：产品不断改进，如有变动恕不另行通知，请以实物为准。 Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
