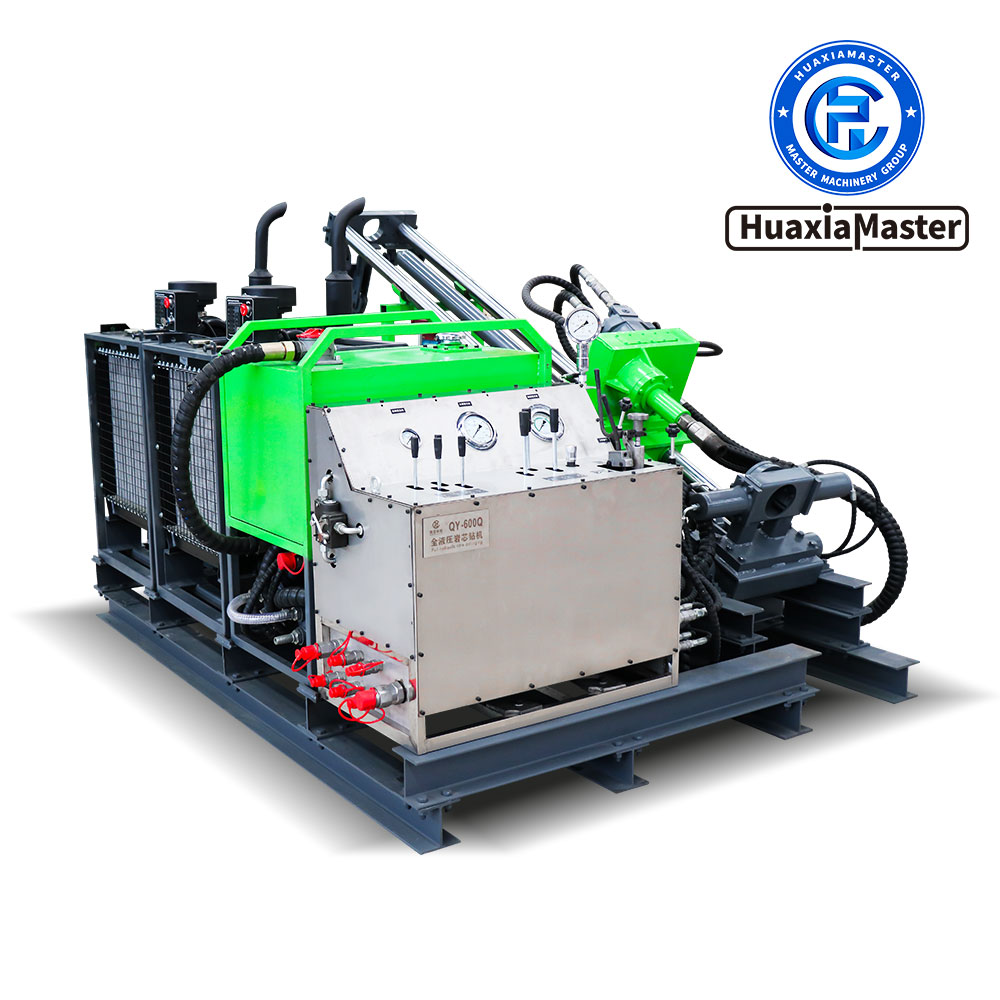

QY系列便携式全液压岩芯钻机

一、QY系列便携式全液压岩芯钻机简介Introduction to QY Series Portable Fully Hydraulic Core Drilling Rig QY便携式全液压岩芯勘探钻机采用全液压动力头式钻进方式的绳索取芯钻机，钻具钻取的岩芯由卷扬机经钻杆内孔提升出来从而完成地质钻探取芯工作。主要适用于固体矿床的钻探，也可用于工程地质、浅层石油、天然气、地下水钻探，还可用于坑道通风、排水和堤坝注浆等工程钻孔。 QY series portable fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting. 二、QY系列便携式全液压岩芯钻机特点 Features of QY Series Portable Fully Hydraulic Core Drilling Rig 1、采用模块化设计，重量轻，便于拆卸和搬运。 Modular design, light weight, easy to disassemble and carry. 2、钻机为全液压驱动，液压系统采用负载敏感控制，工作效率高、扭矩大。 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque. 9、动力头回转采用轴向柱塞泵和斜轴柱塞马达驱动，机械两档加无极调速，结构先进。 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus stepless speed regulation, advanced structure. 10、带有动力头侧向平移机构，桅杆采用油缸起落可整体滑移，可施工45-90°范围内钻孔。 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°. 11、液压夹持器夹持钻杆，配合钻杆拆卸。 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly. 12、液压马达驱动的卷扬机，能灵活的吊起钻具或辅具。 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools. 三、QY系列便携式全液压岩芯钻机参数Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig 钻机型号Drilling rig model QY-600 QY-800 QY-1000 钻进能力Drilling capacity BTW 600m 800m 1000m NTW 400m 600m 800m HTW 200m 400m 400mm PQ / / / 液压系统Hydraulic system 额定压力 Rated pressure 20mpa 20mpa 20mpa 冷却方式cooling mode 水冷water cooling 水冷water cooling 水冷water cooling 发动机Engine 发动机型号Engine type 云内Yunnei 云内Yunnei 云内Yunnei 额定功率 Rated power 55kW*2 58kW*3 55kW*3 动力头Power head 最大扭矩 Maximum torque 1200N.m 1600N.m 500-1460N.m 最大转速 Maximum rotate speed 1100rpm 1100rpm 1300rpm 给进行程 Feeding stroke 1800mm 1800mm 1800mm 提升力 Lifting force 100kN 120kN 160kN 推进力 Propulsion force 75kN 85kN 80kN 绳索取芯 卷扬机Wire-line coring winch 容绳量 Rope capacity 600m 800m 1000m 提升力 Lifting force 15kN 15kN 24kN 提升速度 Lifting speed 110m/min 110m/min 110m/min 桅杆参数Mast parameters 全高 Full height 5.8m 5.8m 5.8m 钻进角度Drilling angle 45-90° 45-90° 45-90° 运输尺寸 Transport size 长*宽*高 L*W*H 3.8*1.5*1.3m 4.8*1.5*1.3m 5.6*2.0*1.3m 整机质量 Whole machine weight 1.6T 2T 2.3T 注：产品不断改进，如有变动恕不另行通知，请以实物为准。 Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
