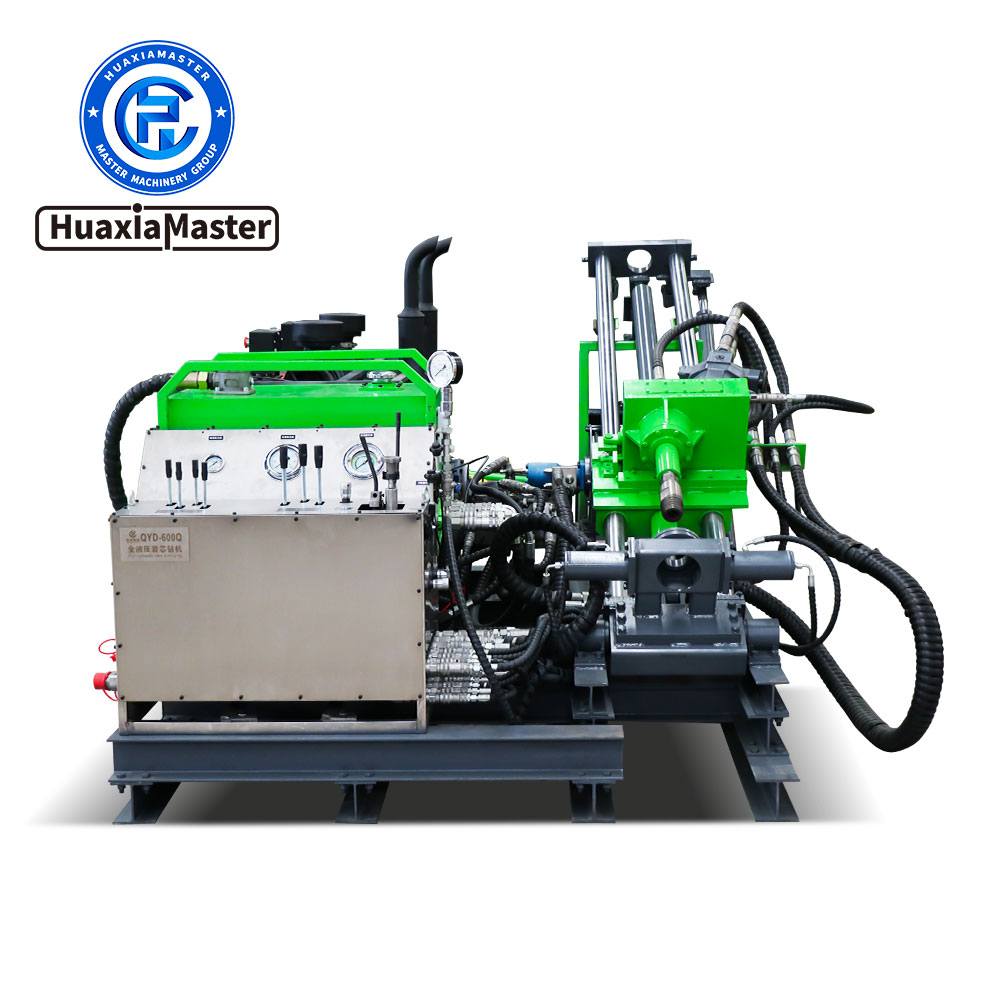

QY series portable fully hydraulic core drilling rig

QY series portable fully hydraulic core drilling rig 1、Introduction of QY Series Portable Fully Hydraulic Core Drilling Rig Fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting. 2、Features of QY Series Portable Fully Hydraulic Core Drilling Rig 2.1 Modular design, light weight, easy to disassemble and carry. 2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque. 2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure. 2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°. 2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly. 2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools. 三、Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig Drilling rig model QY-600 QY-800 QY-1000 Drilling capacity BTW 600m 800m 1000m NTW 400m 600m 800m HTW 200m 400m 400mm PQ / / / Hydraulic system Rated pressure 20mpa 20mpa 20mpa cooling mode water cooling water cooling water cooling Engine Engine type Yunnei Yunnei Yunnei Rated power 55kW*2 58kW*3 55kW*3 Power head Maximum torque 1200N.m 1600N.m 500-1460N.m Maximum rotate speed 1100rpm 1100rpm 1300rpm Feeding stroke 1800mm 1800mm 1800mm Lifting force 100kN 120kN 160kN Propulsion force 75kN 85kN 80kN Wire-line coring winch Rope capacity 600m 800m 1000m Lifting force 15kN 15kN 24kN Lifting speed 110m/min 110m/min 110m/min Mast parameters Full height 5.8m 5.8m 5.8m Drilling angle 45-90° 45-90° 45-90° Transport size L*W*H 3.8*1.5*1.3m 4.8*1.5*1.3m 5.6*2.0*1.3m Whole machine weight 1.6T 2T 2.3T Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
