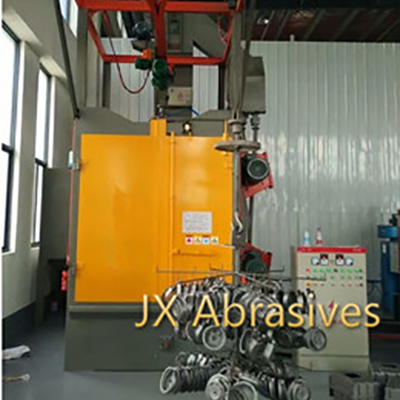

Hanger Shot Blasting Machine
David Cheng
Contact person
Basic Information
| After-sales Service Provided | Overseas service center available |
|---|---|
| Model Number | JX-HBM-04 |
| Brand Name | JX |
| Place of Origin | China |
| Condition | new |
The hook type shot blasting machine is used in the surface treatment of small, medium or large auto Parts.
Delivery terms and packaging
The Hanger Shot Blasting Machine for Auto Parts is used in the surface treatment of small, medium or large auto Parts.
It is made for increasing roughness of surface and shot peening to raise fatigue strength.
Main Technical Parameter:
Size of Blasting Jobs:
Max. Size for work piece (diameter*height) Ф1100×1200mm.
Blast nozzles(2 set) diameter of impeller: ф250 mm.
Rotating speed: 2900r/min.
Max.volume for blasting: 2×180kg/min.
Power: 2×11kw.
Lifting Hook:
(double) Max. hangering weight: 1000kg.
Speed of autorotation: 2.8m/min.
Self-Rotating power: 0.55kw.
Running speed: 20m/min.
Walking power: 0.2kw.
lifting speed: 8m/min.
Lifting power: 1.5kw.
Pulse Jet Type 1 set:
Dust Collector Model SXLT-9.
Cartridge Filter: Φ325 × 660 mm.
Cartridge Filter Quantity: 9pcs.
Air Volume: 9500m3/hr.
Centrifugal Air Fan: 7.5kw.
Port: Quanzhou
Срок доставки: 1 month
Package Type: Carton
Срок доставки: 1 month
Package Type: Carton
