Controller for electro-hydraulic pump diagnostic MDPS MSG MS561

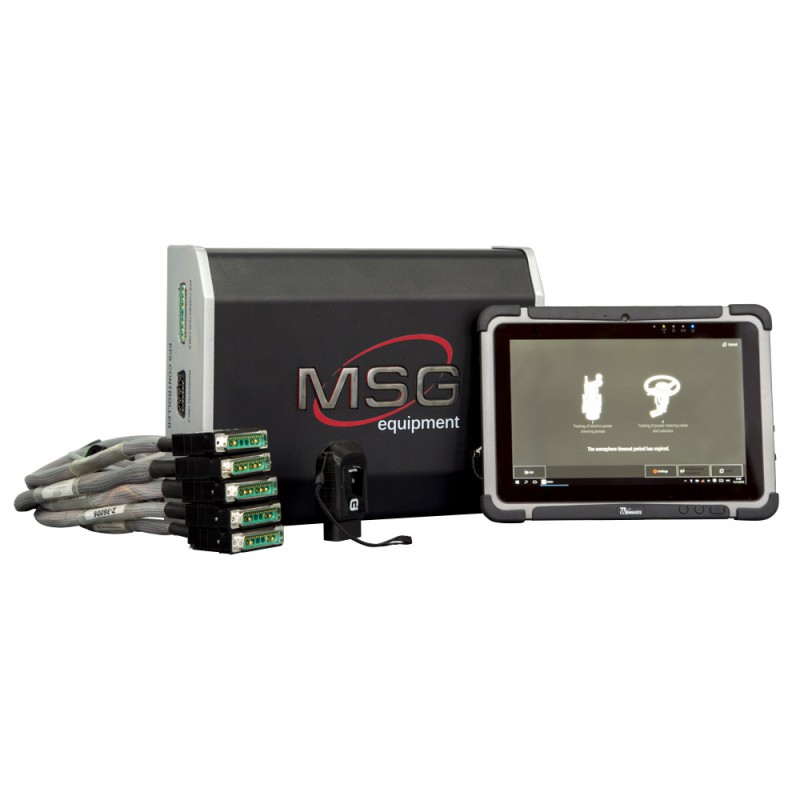

Controller MSG MS561 – equipment that is designed to diagnose and repair electro-hydraulic pump AGUR, check the electrical part of the unit. The controller simulates the real working conditions of the unit on the car. Equipment options: controller and 5 special cables connect to the customer's choice. The controller is a tablet and a scan stand. The equipment includes: a Controller MDPS Tablet with installed software (FREE updates) Diagnostic scanner Vpecker Network cable USB cable 5 cables EPS of Your choice for the user Manual FEATURES: Dimensions, mm - 355*255*85 Weight, kg - 6 The voltage at terminal 15, In - 0-20 The voltage at terminal 30 - 0-20 The current through the terminal 15, And 0-3 Maximum power consumption, W - 2000 PC connectivity - USB/Bluetooth Update - Via the Internet Current flow through terminal 30, And 0-100 The frequency of supply network, Hz - 50/60 Type mains - single phase The voltage, V - 220 Database - More than 100 models Purpose: the controller MSG MS561 intended to diagnose malfunctions of elements of the electro-hydraulic pump. Application: controller MSG MS561 helps service center to identify and analyze the causes of failure of pumps with electric drive, speakers and steering rods with electrorelease. Features: elimination of problems with the wiring, the test is carried out on the car (if you have access to the connectors); easy to use; the small size of the device allow it to be placed even on the table. Manufacturer: MSG equipment How to troubleshoot power steering pump with a controller MSG MS561: connect the cable to the controller unit; a computer program automatically determines the type of unit that was connected; turn on the ignition and the battery; connected to the controller diagnostic scanner read errors that have been stored in the control unit; from scanner window, select your type of vehicle and the control unit, and then read the error codes; disconnect the unit from the controller. By the controller MSG MS561 you can also carry out repair of disassembled units. Detailed information about the controller MSG MS561 you can get from the instruction manual that accompanies the equipment when buying. The link to the site: Servicems.ru The link to the review:
