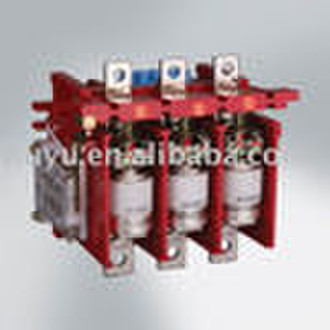

CKJ5 series low voltage AC vacuum contactor
Austin Zhao
Contact person
Basic Information
| Phase | 3 |
|---|---|
| Place of Origin | Zhejiang China (Mainland) |
| Brand Name | HUYU |
| Model Number | CKJ5 |
| Electricity Type | AC |
| Number of Pole | 3 |
Application: CKJ5 is applied to connect and break the circuit in remote distance,to frequent start and control AC motor in the electric power system of AC 50Hz, 1140V and max 660A. It can also be combined with various protection devices into electromagnetic starter, especially applicable in the combination of explosion-proof electromagnetic starter. Main technical parameter: Rated operation voltage: AC50Hz, 380V, 660V, 1140V Rated operation current: 250A, 400A, 600A(600V time). The coventional thermal current of main line: 250A, 400A, 600A Rated voltage of control electric circuit: AC50Hz, 36V, 127V, 220V, 380V. Auxiliary contacts: 3NO, 3NC. Rated operation frequency: (1) AC3 300T/h. (2) AC4 120T/h. (3) Short time operation (20s). The making-breaking capacity of main loop: making 10le. breaking 8le. The limited breaking capacity: 4500A/250, 400; 6000A/600. Electrical life: AC360 (104T). Mechanical life: 300 (104T).
Delivery terms and packaging
Packaging Detail: standard export carton Delivery Detail: within 15days
Port: shanghai or ningbo
