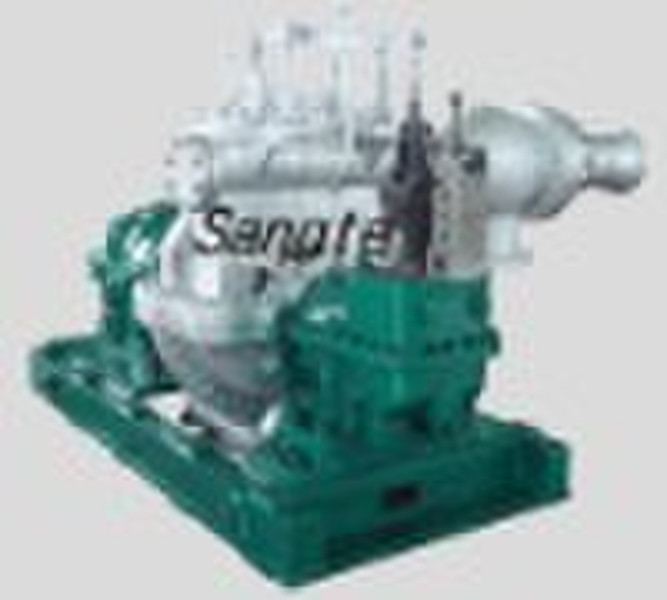

Curtis Stufenvorspann Type Steam Turbine

Single-Stage Back-Pressure Steam Turbine STT624B Output Power :750kW 1800kW Output Rotating Speed : 4600 7000rpm Inlet Steam Pressure : 0.49MpaA 3.43MpaA Inlet Steam Temperature : 280 deg C 435 deg C Exhaust Pressure : 0.12MpaA 1.27MpaA Lubricating Type :Forced Lubrication Adjusting Type : Electro-hydraulic control Foundations : Double-skin The unit can replace motor to make work drive the boiler water-feeding pumps, blower, circulation water pumps, crushers and other rotary equipment in enterprises, such as power plant, petrochemical, chemical, foodstuff, and other plants.And reduce electric consumption and heighten economic benefit obviously.
