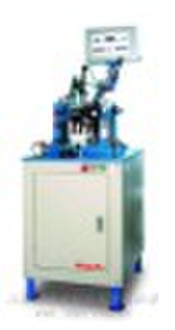

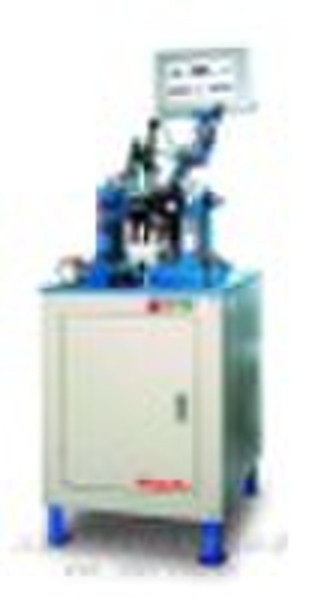

自动石油封修剪机（真空类)

MZ-3001 Automatic Oil Seal Trimming Machine ( Vacuum Type)Characteristics and Usage: Automatic vacuum type oil seal trimming machine is particularly designed for trimming high-grade rubber ring outside diameter and shaping internal edge accurately. Holding ring work piece with fixture (vacuum grip device), it automatically cuts sample with cutter. It is optimally suitable for skeleton oil seal and non-skeleton oil seal, careful cleaning of rubber cup outside diameter and fine shaping of internal edge, also can cut surface. Figure fine, size accurate and concentricity high, it is first choice high-grade process equipment for domestic rubber ring manufacturing industry.Technical Parameters: 1. Cutting Speed: 1050 1700 2500rpm 2. Cutting Range: Φ10mm--Φ200mm 3. Cutting Angle: 0--90° 4. Cutter Specification: 2mm×5mm×100mm high-speed steel or tungsten carbide 5. Air Consumption: 20L/min 6. Production Speed: 1520/min 7. Motor: 550w 8. Power: AC380V±10% 50Hz 9. Shape Size: 750mm×750mm×1750mm 10. Weight: 180kg
