Raw Materials
Our stainless steel wire mesh is generally of stainless steel 302, 304, 304L,316, 316L, 321 and 430 etc. We also produce special material according to the customer request.
Woven Types

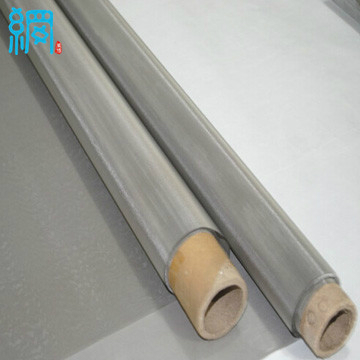

Plain weave: Each warp wire passes alternately over and under the wires running traversely through the mesh at 90 degree angles.It is the most commonly used and simplest wire mesh weave.Warp and weft wires are normally of the same is strong and hard-wearing.
Characteristics
1)Square hole,warp wire and weft wire are of equal size.
2)Accurate in mesh size,high flow rate.
3)High efficient screening,good stability,high opening rate,Low pressure loss.
4)Flat surface,wear-resistant,good air permeability,firm in structure,easy to clean.
Application
1)Architectural mesh
2)Filtration for liquid or gas
3)Fly screen / Security mesh
4)Food Processing
5)Screening / Sieving
6)Plastic & Rubber Extrusion Industry
7)Screen printing on glassware,printed circuit boards
Mesh Sizes
Mesh 3 mesh to 300mesh
wire diameter 1-0.04mm
Roll width 1000mm to 1500mm
Length 30m rolls. sales1(at)webwirecloth(dot)com skype: juliamesh
