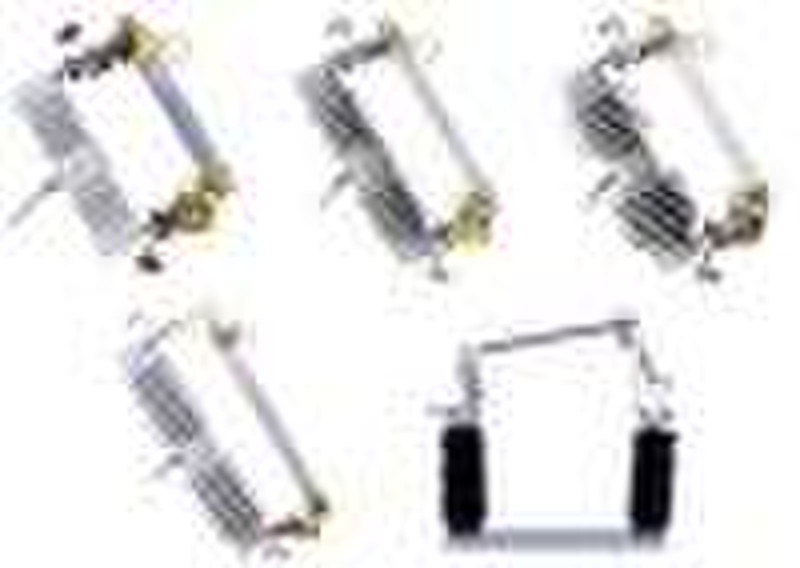

Высоковольтные вырез взрывателя

Product features: 1) Combine with HUBELL's fuses link and provide transformers, capacitors, cables and circuits with complete fault protection 2) Adapt the principle of arching with gases expelled gradually at both ends, design specially pressure release cap (vent), apply button head type link and sheaths fuse with assistant arcing tube 3) Apply solid cast copper material to ensure the reliability of on/off, apply the new materials for fuse and inorganic materials for arching 4) Maintenance free, ultraviolet radiation resistant Technical Parameter Type: ZYF-5 1) Rated voltage: 12KV 2) Rated current: 100A, 200A 3) Breaking current: 6.3KA, 8.0KA 4) Impulse voltage: 110KV 5) Power-frequency withstand voltage: 40KV 6) Leakage distance: 250mm 7) Weight: 7.5KG 8) Dimension: 40*34.5*12cm Type: ZYF-6 1) Rated voltage: 15KV 2) Rated current: 100A, 200A 3) Breaking current: 10KA, 12KA 4) Impulse voltage: 125KV 5) Power-frequency withstand voltage: 45KV 6) Leakage distance: 320mm 7) Weight: 12KG 8) Dimension: 40*36*13cm Type: ZYF-7 1) Rated voltage: 24KV 2) Rated current: 100A, 200A 3) Breaking current: 8KA, 10KA 4) Impulse voltage: 150KV 5) Power-frequency withstand voltage: 65KV 6) Leakage distance: 540mm 7) Weight: 12KG 8) Dimension: 49*35*14cm Type: ZYF-8 1) Rated voltage: 33KV 2) Rated current: 100A, 200A 3) Breaking current: 10KA, 12KA 4) Impulse voltage: 170KV 5) Power-frequency withstand voltage: 70KV 6) Leakage distance: 720mm 7) Weight: 15KG 8) Dimension: 68*17*15cm Type: ZYF-16 1) Rated voltage: 33KV 2) Rated current: 100A, 200A 3) Breaking current: 8KA, 10KA 4) Impulse voltage: 170KV 5) Power-frequency withstand voltage: 70KV 6) Leakage distance: 820mm 7) Weight: 27.5KG 8) Dimension: 68*18*15cm
