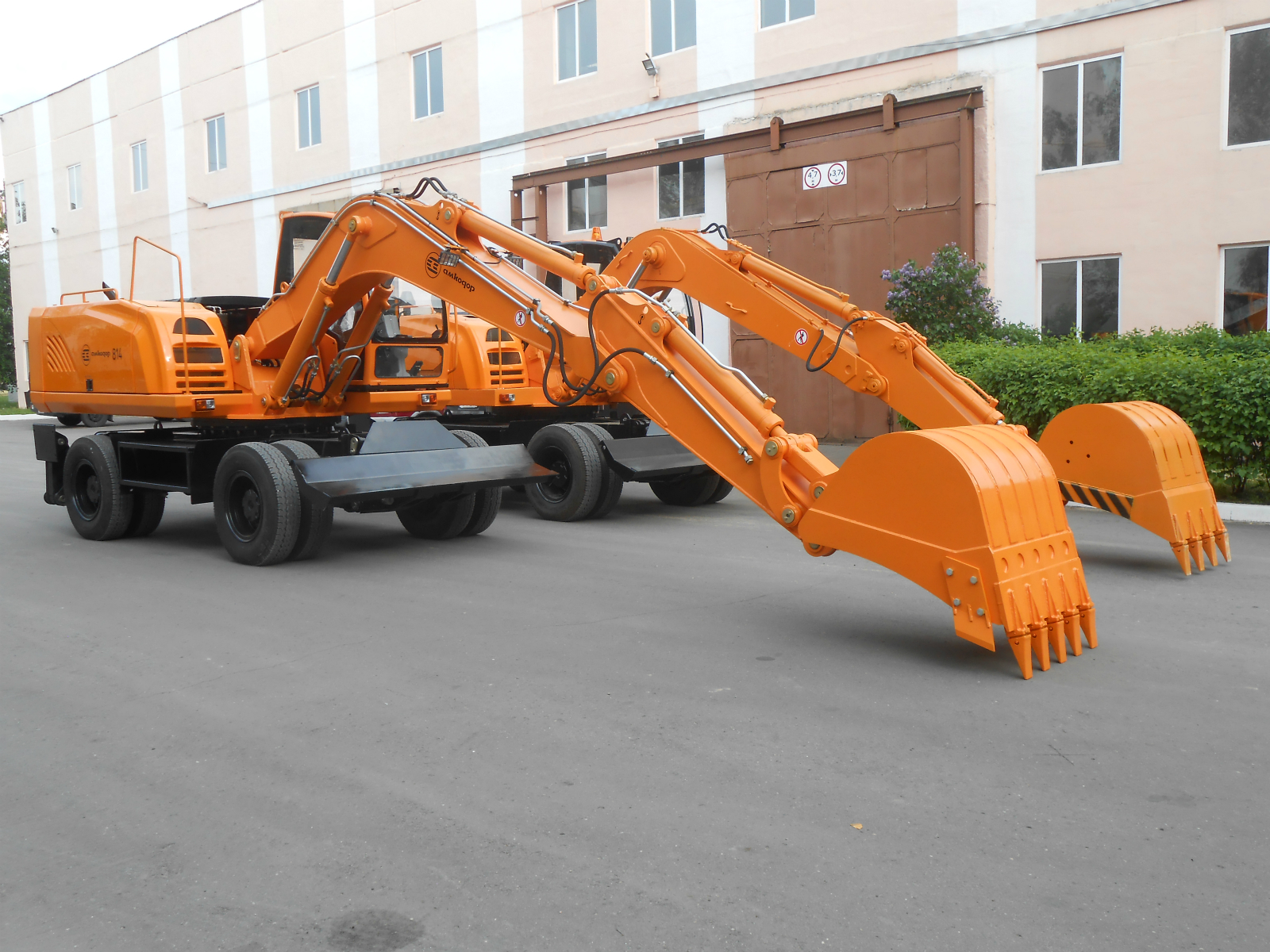

Wheeled excavator EW-1400

Arrow monobloc EO-3223.03.01.000 Length, mm 4500 The hilt of EC-3223.03.02.000 Length mm 1800 Bucket excavator EO-3223.03.11.000 Rated bucket capacity, m3 0.95 Geometric bucket capacity, m3 0.8 The width of the cutting edge of the bucket, mm 1200 Digging depth, mm 4890 Digging radius at Parking level, mm 7750 Unloading height, mm 5720 Digging force, kN 82 Base, mm 2670 Blade EW-1400.28.04.000 Width of blade, mm 2500 Blade height, mm 800 Lowering the blade below the supporting surface of the wheels 70 mm Weight of blade, kg 300 The rotation frequency of rotary platform, Rev/min 6.15 Operating weight kg 13500 Diesel D-245 Rated power of 77 kW (105 HP) @ 2,200 rpm The highest speed of movement, km/h 30 Type hydraulic - dual pump with adjustable pump The number of valves-2 Type hydraulic control valves -- 4 sections, with direct hydraulic control Time hydraulic cycle, 18.5 Length, mm 8000 On the hood width, mm 2500 Height, мм3250
