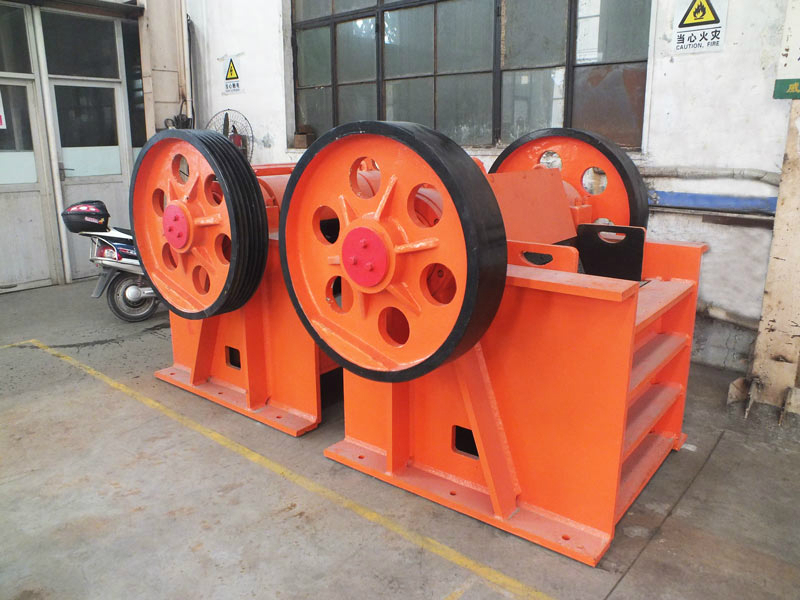

Stone PE jaw crushing machine, crusher equipment
Introduction Overview of Stone PE jaw crushing machine, crusher equipment：
Stone PE jaw crushing machine, crusher equipment is the crusher equipment appeared earlier, because of its simple structure, strong, reliable, easy maintenance and repair and production and construction costs are relatively small, so until now is still widely in the metallurgical, chemical, building materials, electric power and other industrial sectors.
Application of Stone PE jaw crushing machine, crusher equipment：
1. Stone PE jaw crushing machine, crusher equipment mainly used for a variety of ore and large pieces of material of medium size crushing.
2. Stone PE jaw crushing machine, crusher equipment widely used in mining, metallurgy, building materials, roads, railways, water conservancy,chemical and other industries.
Advantages of Stone PE jaw crushing machine, crusher equipment：
1.Its processing capacity than the similar modelsof more than 15%, saving energy consumption of more than 10%.
2.Unique type of crushing chamber,higher utilization rate of jaw plate material, jaw plate can be interchanged U-turn four times, improving the utilization rate of material and prolonging the service life.
3.Crushing cavity jaw plate tooth peak relative, more conducive to crushing hard material.
4.Transmission angle adjustable structure design,has higher yield in the discharge mouth the same situation.
5.Universal fixed jaw plate and movable jaw plate,can effectively reduce the number of users spare parts, and installation more convenient.
6.Discharge port adopts double jack hydraulic adjustment mode, adjust more quickly and more effort.
7.Movable jaw part and the frame are detachable structure, which is convenient for transportation.
Working principle of Stone PE jaw crushing machine, crusher equipment:
The main machine, moving jaw, eccentric shaft, jaw plate, brackets and other components, the motor through the V-belt rotation eccentric shaft, the moving jaw by the adjusted track movement, which will crush the cavity of the material broken.
The frame is a single integral cast steel structure. The front wall of the frame is equipped with a fixed jaw fastened with a wedge bolt. A side guard is installed on the side wall of the frame around the crushing chamber to prevent the wear of the frame side wall. The movable jaw is a molded steel piece with a movable jaw plate on its front and its upper part is suspended from the frame by eccentric shaft and roller bearing. The lower part is supported on the bracket and is in rolling contact with the elbow plate. Terminal with flywheel and pulley.
The other end of the brackets is supported on the adjustment seat and is brought into contact with the bearing. The brackets are supported by the movable jaw, and the material which can not be crushed into the crushing chamber can not be broken. Insurance role, that is, their own rapid break, while the protection of other parts from damage.
The adjustment seat is installed in the chute on both sides of the frame and is in close contact with the wedge. When the discharge port needs to be adjusted, the nut is right-handed and the wedge is raised immediately by the wrench. Move, the discharge port from big to small, and vice versa from small to big. Structural features: The machine is mainly composed of frame, moving jaw, eccentric shaft, jaw plate, brackets and other components, the motor through the V-belt rotation eccentric shaft, the moving jaw by the adjusted track to move, so the crushing chamber The material is broken.
Technical parameter table of Stone PE jaw crushing machine, crusher equipment：
Model Feed size (mm) Feed granularity (mm) Productivity (t/h) Adjustment range (mm) Motor power
(kw) Dimensions (mm) Weight
WPE-150×250 150×250 125 1-5 10-40 5.5 875×758×850 0.81
WPE-150×750 150×750 125 5-16 10-40 15 1200×1530×1060 3.8
WPE-250×400 250×400 210 5-20 20-60 15 1450×1315×1296 2.8
WPE-400×600 400×600 340 16-65 40-100 30 1565×1732×1586 6.5
WPE-500×750 500×750 425 45-100 50-100 55 1890×1918×1870 10.1
WPE-600×900 600×900 500 90-180 65-160 55-75 2305×1840×2298 15.5
WPE-750×1060 750×1060 630 110-260 80-140 110 2450×2472×2840 28
WPE-900×1200 900×1200 750 160-410 95-165 110 3335×3182×3025 50
WPE-1000×1200 1000×1200 850 250-480 195-265 110 3435×3182×3025 57
WPE-1200×1500 1200×1500 1020 350-800 150-300 160 4200×3732×3843 100.9
WPEX-250×750 250×750 210 15-30 25-60 22 1667×1545×1020 4.9
WPEX-250×1000 250×1000 210 16-52 25-60 30-37 1530×1992×1380 6.5
WPEX-250×1200 250×1200 210 20-60 25-60 37 1900×2192×1430 7.7
WPEX-300×1300 300×1300 250 20-90 25-105 75 2720×1950×1600 11
Delivery terms and packaging
Port: Tianjin,Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc. Срок доставки: 15 days Package Type: Box Weight Incl. packaging: 5 Tonne
Packing size: 3x2x15 Meter
