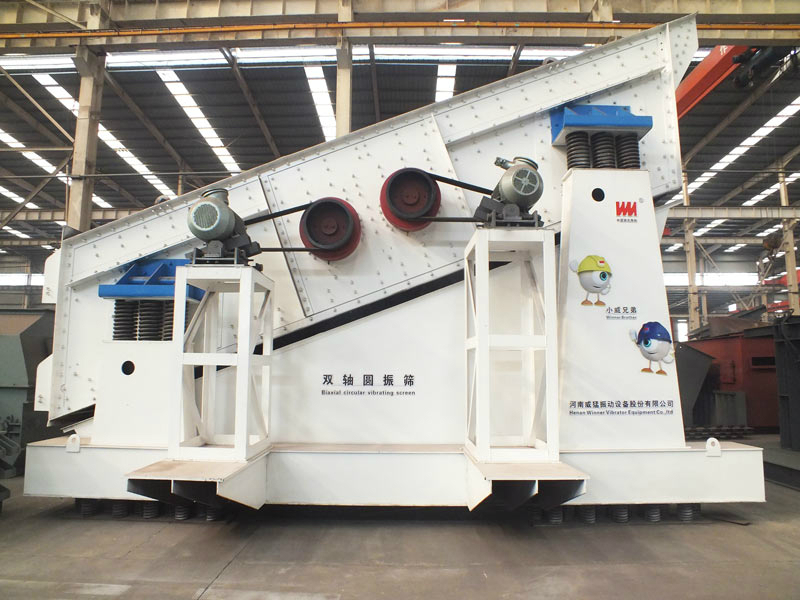

DY Large biaxial circular vibrating screen for mining

DY Large biaxial circular vibrating screen for mining

Condition:
new
original price: 12 000 USD
Xinxiang, China
Minimal order:
1 Set
Production capacity:
300 Set / Month
Xinxiang, China
Anonymous
+86 3733067721
Anne Gao
Contact person

Basic Information

Concentrate Or Not Non-concentrate
Place of Origin China
Brand Name WINNER
Shape Lump
Model Number DY
DY Large biaxial circular vibrating screen for mining Application of DY Large biaxial circular vibrating screen for mining: DY Large biaxial circular vibrating screen for mining is round, it is a large-scale screening equipment developed by our company for the coal industry. The screen assembly adopts the most advanced ring groove riveting, which has the characteristics of strong and durable, not easy to plug the hole, large processing capacity and so on. Overview of DY Large biaxial circular vibrating screen for mining: 1. DY Large biaxial circular vibrating screen for mining trajectory is round, more conducive to material stratification and through the sieve. 2. DY Large biaxial circular vibrating screen for mining consists of sieve body, damping spring, excitation device, motor bracket, transmission belt, motor. 3. DY Large biaxial circular vibrating screen for mining adopts two motor driving two exciter, and through a toothed belt connecting the two axes to maintain synchronization, convenient disassembly and maintenance. Features of DY Large biaxial circular vibrating screen for mining: 1. DY Large biaxial circular vibrating screen for mining is our company for the coal industry developed large-scale screening equipment, with large processing capacity, high screening efficiency. 2. Sieve body assembly using the most advanced ring groove riveting, with strong and durable, not easy to plug holes and other characteristics. 3. By adjusting the eccentric block’s angle of vibrator, affecting the exciting force, and thus adjust the amplitude of the vibrating screen. 4. Large carrying capacity, long service life. Applications of DY Large biaxial circular vibrating screen for mining: 1. Metallurgical beneficiation grading operations. 2. Coal preparation of dry materials grading operations. 3. Building materials of dry materials grading operations. 4. Power industry of dry materials grading operations. Technical Data Sheet of DY Large biaxial circular vibrating screen for mining: Model Sieve area (m²) Sieve size (mm) Granularity (mm) Capacity Double amplitude (mm) Vibration time(r/min) Motor Single point of maximum dynamic load(N) t/h Model Power(kw) WDY3061 18.3 5-200 <450 220-1800 8-11 730 Y200L-4 30x2 12000 2WDY3061 2x18.3 up:50-200 <450 220-1800 8-11 730 Y200L-4 30x2 12000 down:5-50 WDY3073 21.9 5-200 <450 220-1800 10-12 708 Y200L-4 30x2 12000 2WDY3073 2x21.9 Up:50-200 down:5-50 <450 620-1800 Y200L-4 30x2 15000 WDY3373 24.1 5-200 <450 240-2200 10-12 708 Y200L-4 30x2 15000 2WDY3373 2x24.1 up:50-200 down:5-50 <450 680-2200 Y200L-4 30x2 18500 WDY3673 26.3 5-200 <450 260-2400 10-12 708 Y225M-4 45x2 19000 2WDY3673 2x26.3 up:50-200 down:5-50 <450 740-2400 Y225M-4 45x2 22000

Delivery terms and packaging

Port: Tianjin,Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc.
Срок доставки: 20 days
Package Type: Box
Weight Incl. packaging: 4 Tonne
Packing size: 3x2x2 Meter

Payment term

Documents Against Acceptance

Documents Against Payment

Letter of credit

Telegraphic transfer

Credit/debit card

Cash

MoneyGram

Paypal

Western Union
